Microwaves: 40GHz Anechoic Chamber and Test Equipment
Microwaves: 40GHz Anechoic Chamber and Test Equipment

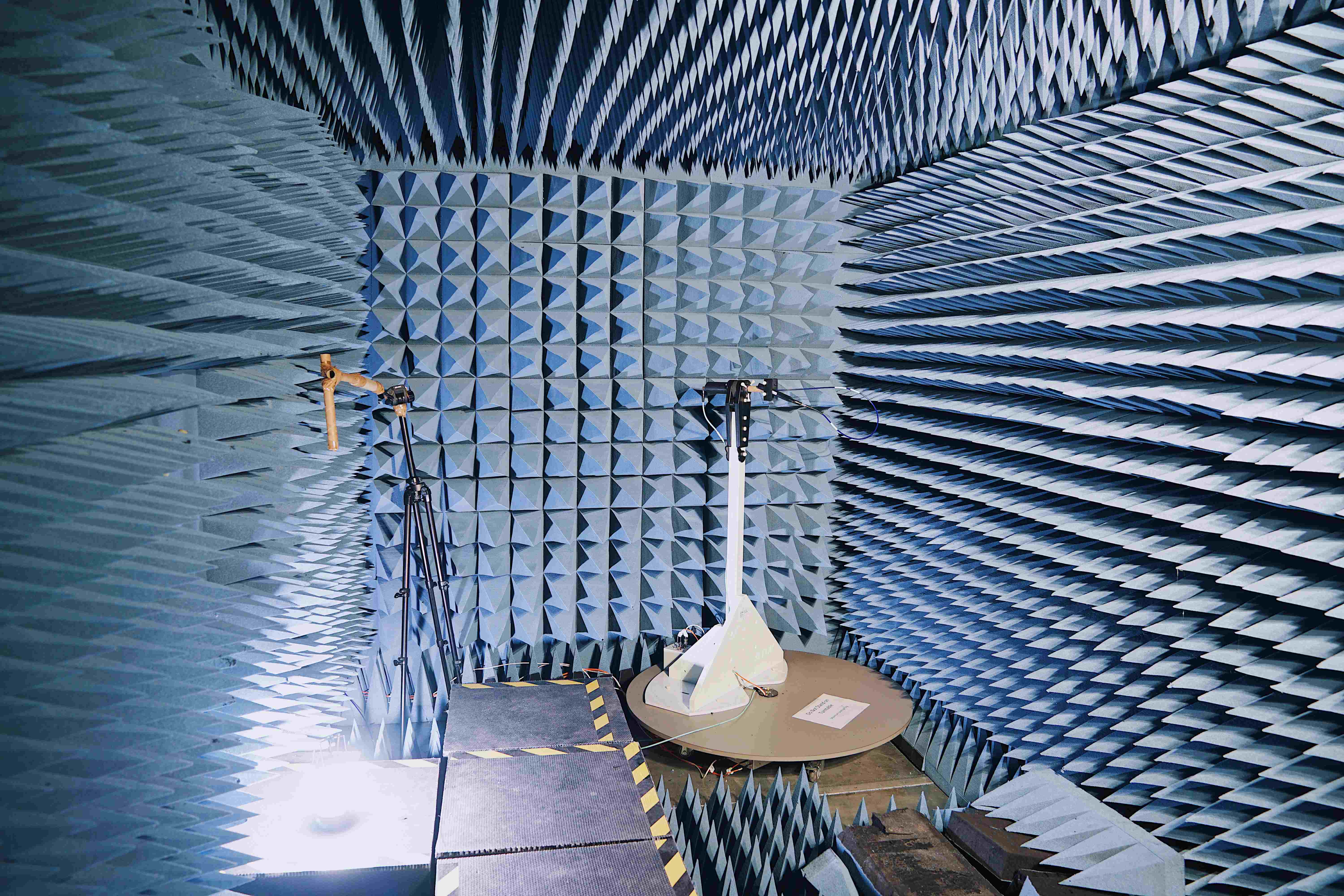

- A radio frequency (RF) anechoic chamber at LSBU is one of the finest in London. This can test devices radiation emission up to 40GHz alongside associated test equipment.
- There are also PCB production facilities for circuit design, probing stations for device characterisation and software enabling intensive circuit and antenna design, circuit simulations.
Skin Measurments: AquaFlux and Epsilon
AquaFlux™ evaporimeter and the Epsilon™ contact imaging system are the state of the art skin measurement technologies that were originally developed at London South Bank University and later converted into commercial instruments through the university spin-out company - Biox Systems Ltd (www.bioxsystems.com). AquaFlux™ and the Epsilon™ measure quantities such as TEWL, SSWL, hydration, perspiration, membrane integrity, wrinkles & skin topology (micro-relief).

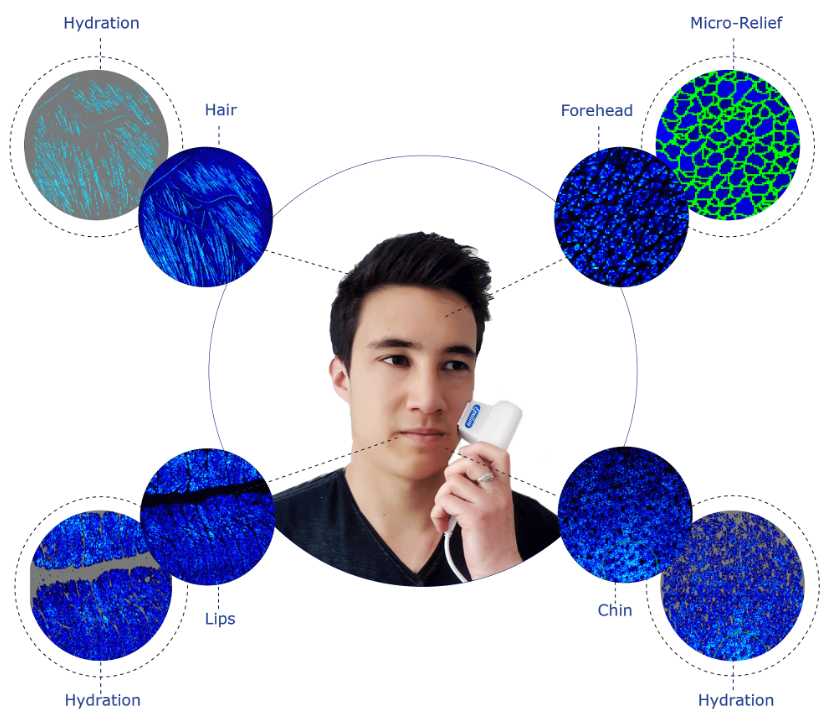

The Epsilon™ is a contact imaging system that responds to capacitance. Its proprietary technology maps the sensor’s non-linear response onto a linear scale with a capacitance range from air to water. Its calibration ensures that every pixel in the image provides a reproducible measurement that can be interpreted in terms of hydration.
The AquaFlux is a TEWL measurement device with a unique patented technology that overcomes challenges of the closed measurement chamber through a condenser that continuously removes water vapour by converting it to ice. AquaFlux out-performs all its competitors in terms of accuracy, sensitivity, repeatability, reproducibility and versatility (supported by numerous studies available).
High Speed Ultrasound System
A next generation ultrasound imaging system is not available in the clinic yet. It is equivalent of a slow-motion camera that can capture more data than any commercially available ultrasound system. It can be used for medical and industrial applications. For example; high resolution imaging, cancer imaging, ultrasound treatment, bone imaging, pipeline inspection, flow measurements, defect detection in composite materials and several others.

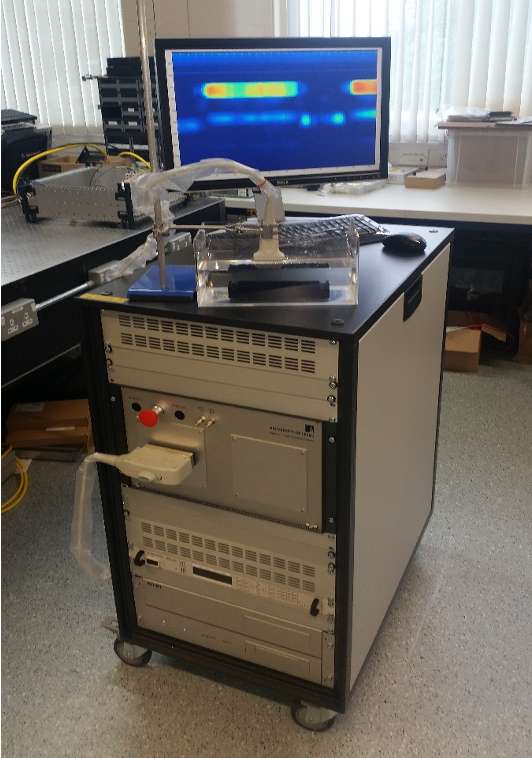

UARP-II is a state-of-the-art ultrasound research imaging systems with 256 channels designed for fast acquisition times. It can acquire at a rate of 20,000 fps and has a data transfer rate of 64 GB/sec. Receiver front end has a capability of 80 MSPS with 12-Bit ADCs. Available with trigger inputs and output for synchronizing with other devices.
This equipment is the most advanced imaging system and it is currently used for following research projects: ultrasound bone characterisation, super-resolution ultrasound, microvascular imaging, ultrasound elastography, and blood flow measurements.
High Speed Ultrasound System
A next generation ultrasound imaging system is not available in the clinic yet. It is equivalent of a slow-motion camera that can capture more data than any commercially available ultrasound system. It can be used for medical and industrial applications. For example; high resolution imaging, cancer imaging, ultrasound treatment, bone imaging, pipeline inspection, flow measurements, defect detection in composite materials and several others.
UARP-II is a state-of-the-art ultrasound research imaging systems with 256 channels designed for fast acquisition times. It can acquire at a rate of 20,000 fps and has a data transfer rate of 64 GB/sec. Receiver front end has a capability of 80 MSPS with 12-Bit ADCs. Available with trigger inputs and output for synchronizing with other devices.
This equipment is the most advanced imaging system and it is currently used for following research projects: ultrasound bone characterisation, super-resolution ultrasound, microvascular imaging, ultrasound elastography, and blood flow measurements.
Ultrasound Pressure Calibration
This is a specialised high precision ultrasound pressure calibration setup. It is equivalent of an underwater microphone. High-speed ultrasound system and the ultrasonic testing system are regularly calibrated using this setup. It can be used for medical and industrial applications. For example; measuring microbubble response, cavitation detection, testing liquid composition, calibrating ultrasound systems.

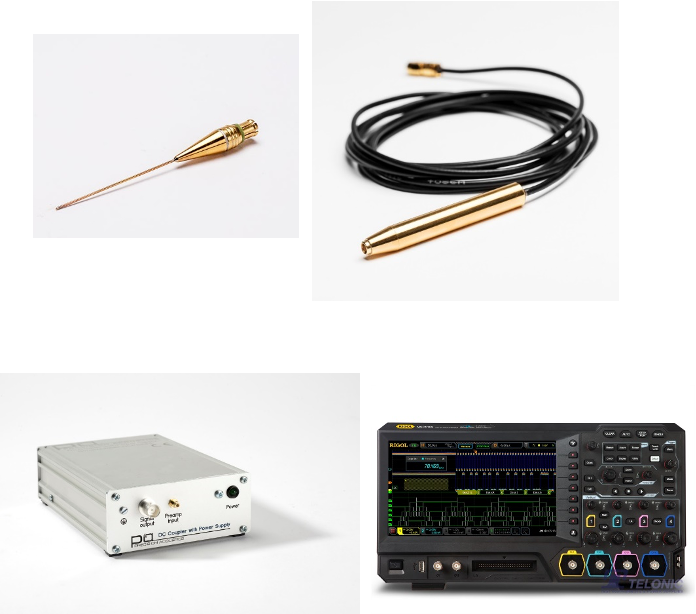

This calibration system consists of a needle hydrophone that can operate 1 – 25 MHz range. The sensor material is a 9 micron thick gold electroded Polyvinylidene fluoride (PVDF) film with a typical probe sensitivity of 55nV/Pa. It is mounted on a CNC system for scanning a full 3D ultrasound field.
Ultrasound Wave Simulations
3D ultrasound wave simulations require high processing power and memory. We have the required software and the necessary processing capabilities to successfully run models. This simulation environment can be used for medical and industrial applications. For example; designing a high strength bolt (by simulating ultrasound waves in a heavy duty bolts used in bridge construction see left bottom figure) or designing new ultrasonic sensors (by estimating the ultrasound pressure and the ultrasonic field).
The simulation environment uses Matlab and specialised C scripts to simulate ultrasound wave propagation in hard and soft materials. It can perform linear and non-linear wave propagation simulations by running Field II, K-wave or Simsonic tools. It can be used to estimate harmonic generation through nonlinear propagation and shock waves. Microbubble oscillations under ultrasound excitation can be simulated.
This high-end simulation environment is used for the 3D super-resolution ultrasound, ultrasound bone imaging and needle pressure sensor for compartment syndrome projects.
To discover more regarding ultransound research please visit Dr Sevan Harput's SPE3D (/speed/) Ultrasound Research Lab.
3D Modelling and 3D Printing
LifeDesign Lab is led by Dr Hamed Rajabi, he is a Lecturer in the School of Engineering at LSBU. He has an interdisciplinary research background. He received his first PhD in Mechanical Engineering followed by a second one in Biology. Collaborations with researchers from various fields have enabled him to employ methods and techniques from different fields into his research and, thereby, answer questions that can be addressed only using multidisciplinary approaches.
Hamed is passionate about biological systems and their ‘technological’ complexities. He leads LifeDesign Lab, where he and his group aim to unravel these complexities, learn from them to develop nature-inspired concepts, and elaborate them into a technology readiness level that can be converted into marketable products, especially in the areas of structural reinforcement, lightweight construction, healthcare and robotics.
Further information can be found on Dr Hamed Rajabi's LifeDesign Lab.
MammoWave Microwave Medical Imaging Apparatus

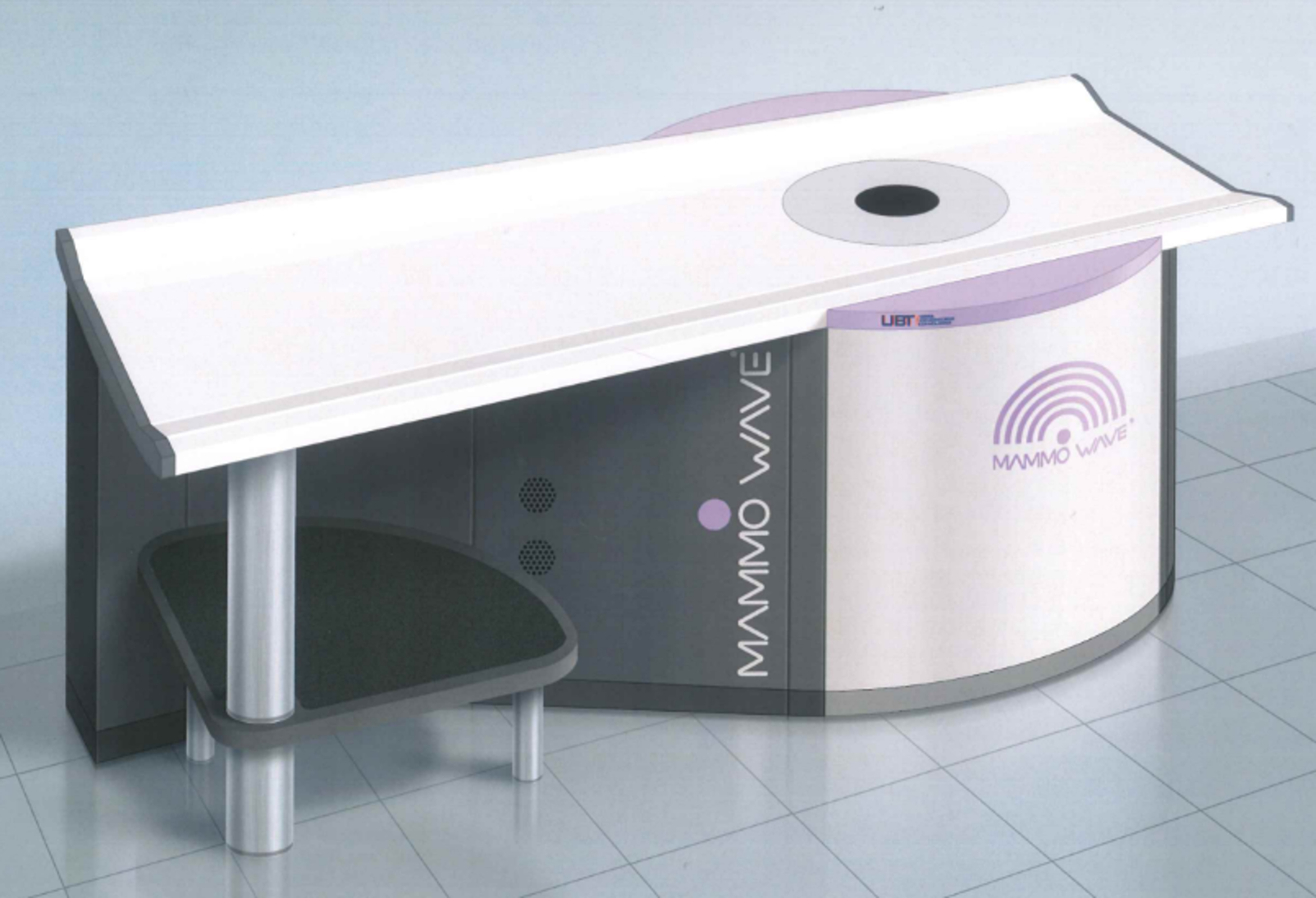

In 2019, SABER acquired a newly developed device by the UBT Tech Srl, called MammoWave which allows illumination of the breast using electromagnetic fields to measure the correspondent scattered electromagnetic fields and to process the measured field through a dedicated algorithm, obtaining the image of the breast and highlighting tissues inhomogeneties.
Additional Equipment- Microwaves: 40GHz Anechoic Chamber and Test Equipment
- Lasers and detectors:Er:YAG laser, Nd:YAG laser, OPO laser, He -Ne laser, Nitrogen laser, MCT detectors, laser energy monitor, optical tables/benches.
- Mechanical testing: nano-indenters, pressure sensors, stress-strain measurment.
- TimeDomain’s PulsON 400 (x3) PulsON 410 (x20) Impulse Radio Ultra Wideband IR-UWB ranging, communication and radar modules
- Vector Network Analyser (VNA), Vector Signal Analyser (VSA), Spectrum and Impedance Analyser
- Precise LCR components Analyser
- PCB Prototyping machine
- Generic equipement: HP Digital Oscilloscopes, Picoscopes, HR Proscopes, multimeters, signal generators, IBM x3400 servers, Fingerprint sensors.
Microwaves: 40GHz Anechoic Chamber and Test Equipment
- A radio frequency (RF) anechoic chamber at LSBU is one of the finest in London. This can test devices radiation emission up to 40GHz alongside associated test equipment.
- There are also PCB production facilities for circuit design, probing stations for device characterisation and software enabling intensive circuit and antenna design, circuit simulations.
